Gigabyte's Dual-Power RTX 5090 Experiment: When More Connectors Lead to Meltdown
📷 Image source: cdn.wccftech.com
A Smoking PCB and a Cautionary Tale
When Extra Power Becomes a Destructive Force

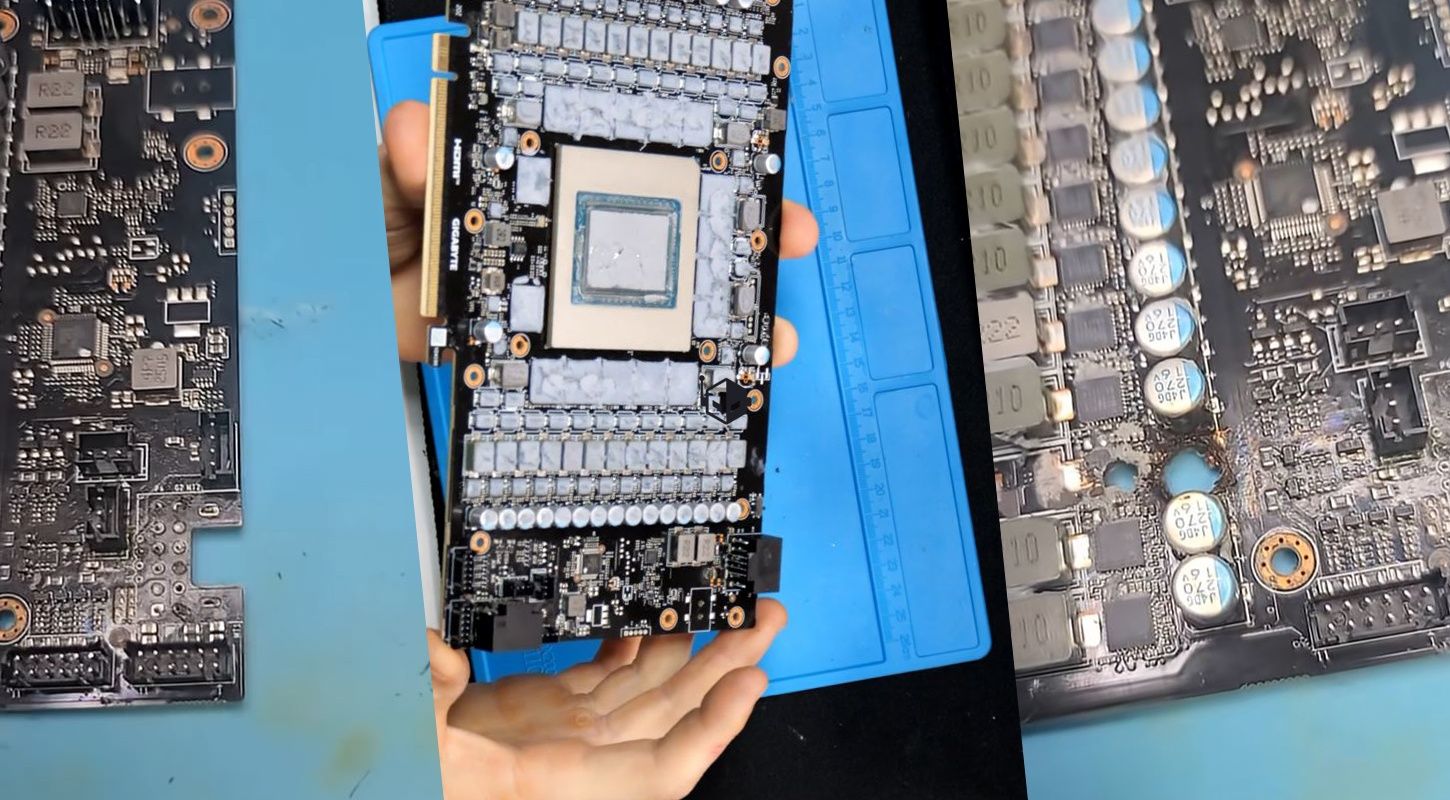

A prototype graphics card from Gigabyte, intended to be a high-end version of the anticipated NVIDIA GeForce RTX 5090, has demonstrated a dramatic and destructive failure. According to a report from wccftech.com, the experimental card, which featured a second 12V-2x6 power connector added beyond the standard design, ended up burning holes straight through its own printed circuit board (PCB). This incident, documented on February 22, 2026, provides a stark, physical warning about the extreme power demands and thermal challenges facing next-generation graphics hardware.
The failure was not a simple overheating of a component but a catastrophic melt-through of the card's foundational board. The 12V-2x6 connector, also known as the 12V-2x6 or 12VHPWR connector, is the modern standard designed to deliver up to 600 watts of power to high-end GPUs. The decision to add a second such connector was likely an attempt by Gigabyte to create a card with immense power headroom for extreme overclocking, pushing performance boundaries for enthusiasts. However, the result suggests that managing that sheer electrical load, and the heat it generates, presents formidable engineering obstacles that go beyond simply adding more plugs.
Deconstructing the Failure: The 12V-2x6 Connector Under Scrutiny
From Solution to Potential Problem Point
The 12V-2x6 connector was introduced to replace older 6-pin and 8-pin PCIe power connectors, consolidating power delivery into a single, more compact interface. Its design includes smaller sense pins that communicate with the power supply to ensure a secure connection before full power is applied—a safety feature born from earlier issues with melting connectors on high-wattage cards. Despite these improvements, the connector and its integration into the PCB remain critical points of thermal stress, especially as power budgets for flagship GPUs continue to climb toward and beyond the 600-watt mark.
In this Gigabyte prototype, the addition of a second connector would theoretically allow the card to draw well over 600 watts, potentially approaching 800 watts or more when considering power also drawn from the PCIe slot. This creates an intense concentration of electrical current that must be cleanly distributed across the PCB's power delivery circuitry, or VRM (Voltage Regulator Module). The fact that the failure manifested as burned holes indicates a localized overheating event so severe it carbonized the fiberglass and epoxy of the PCB itself, suggesting a fault in the current path or an inability to dissipate the immense heat generated at that specific junction between connector and board.
The Engineering Balancing Act: Power, Heat, and Material Limits
Why More Plugs Isn't Always the Answer
Designing a graphics card is a constant negotiation between power delivery, thermal dissipation, and physical material constraints. The PCB is not just a passive platform for components; its copper layers are carefully routed to carry power and data, with thickness and width calculated to handle expected current without excessive resistance, which generates heat. Adding a second high-wattage connector requires a significant redesign of this power plane, potentially creating new points of high current density where heat can accumulate if the design is not flawless.
Furthermore, the components that make up the VRM—capacitors, inductors, and MOSFETs—must be rated for the increased load and be cooled effectively. The incident suggests that in Gigabyte's experimental layout, either the PCB trace design, the solder joints, the connector interface itself, or the VRM components adjacent to the added connector could not cope with the sustained power flow. This moves the failure mode beyond a simple cable seating issue (a primary culprit in earlier 12VHPWR incidents) and into the realm of fundamental board-level power delivery design under extreme conditions.
Historical Context: A Recurring Theme of Melting Connectors
Learning from the RTX 4090 Episode
This is not the first time a next-generation NVIDIA connector has been associated with melting and fire risk. When the RTX 4090 launched with the original 12VHPWR connector (the predecessor to the refined 12V-2x6), numerous user reports surfaced of melted connectors and damaged cards. The root cause was largely attributed to user error—specifically, not fully seating the connector—combined with a connector design that was somewhat fragile and allowed for partial, high-resistance connections. NVIDIA and its partners eventually responded with the improved 12V-2x6 standard, which features shorter sense pins to ensure a secure connection is made before power flows.
The Gigabyte prototype failure, however, appears distinct. It occurred on an engineering sample, likely under controlled testing conditions, and the damage is to the PCB itself, not just a melted plastic connector. This indicates that even with a properly seated connector, the act of pushing power delivery to these new extremes—beyond the design parameters of a standard single-connector card—introduces novel risks that the existing ecosystem of components and materials must be re-evaluated to address.
The Manufacturer's Motive: Why Build Such a Card?
The Race for Overclocking Supremacy
Gigabyte's foray into a dual 12V-2x6 connector design is a clear bid for the extreme overclocking and enthusiast market. In this highly competitive segment, board partners like Gigabyte, ASUS, and MSI vie to produce the highest-clocking, most powerful versions of NVIDIA's GPUs. These cards, often sold under brands like Gigabyte's AORUS Xtreme, feature massively overbuilt VRMs, sophisticated cooling solutions, and sometimes unconventional power designs to eke out every last bit of performance. A dual-connector card promises virtually unlimited power headroom, allowing competitive overclockers to use liquid nitrogen or other extreme cooling methods to push clock speeds without being limited by the GPU's power draw.
However, this incident reveals the potential pitfalls of such an arms race. Pushing power limits requires a holistic redesign, not just an additive one. The cooling system must handle the increased heat output from the GPU core and the VRM, and the PCB must be engineered from the ground up to route and manage the tremendous current. The burned holes in Gigabyte's PCB are a physical testament to a point of failure that was underestimated or overlooked in this particular prototype, serving as a costly lesson in the lab before any product could reach consumers.
Broader Implications for the PC Enthusiast Market
Rising Costs, Complexity, and Risk
This failure is a microcosm of larger trends in high-performance computing. As performance gains become increasingly tied to raw power consumption, the entire ecosystem—from power supplies to cases to cooling—faces escalating demands. A dual-connector graphics card would likely require a 1,200-watt or larger power supply, generate enormous amounts of waste heat needing potent case airflow or water cooling, and contribute to significantly higher electricity costs for users. The pursuit of ultimate performance begins to clash with practical considerations of noise, efficiency, cost, and now, physical safety and reliability.
For the average consumer, the standard RTX 5090 with a single 12V-2x6 connector will be the relevant product. This incident, however, casts a shadow by highlighting the engineering challenges at the very frontier of what's possible. It may prompt more cautious validation from NVIDIA and its partners on non-standard designs and could lead to more explicit power limits or certifications for custom board designs. It also serves as a reminder to enthusiasts that the most extreme hardware modifications and designs carry inherent risks of catastrophic failure.
Technical Deep Dive: What "Burning Holes in the PCB" Actually Means
The Physics of a Failed Power Stage
A printed circuit board is a composite of woven fiberglass (the substrate) and epoxy resin, laminated with thin layers of copper that form the circuits. Copper is an excellent conductor, but it has resistance. When an extremely high current passes through a trace or via (a conductive hole through the board), it generates heat proportional to the square of the current (I²R heating). If the trace is too narrow, a connection is poor, or a component fails short, the localized heating can become extreme—exceeding 300 degrees Celsius (572 degrees Fahrenheit).
At such temperatures, the epoxy resin begins to pyrolyze, breaking down chemically and releasing gases. The fiberglass can smolder and burn, and the copper can melt or oxidize. This process, once started, is often self-reinforcing: as the material carbonizes, its resistance increases, generating even more heat. The result is a charred, conductive hole that can create short circuits between different PCB layers, completely destroying the board's functionality. This is a fundamental failure mode that is very difficult to recover from, indicating a severe fault in the current-carrying capacity of that specific part of the design.
Comparative Landscape: How Other Board Partners Might Approach the RTX 5090
Alternative Paths to High Power Delivery
Gigabyte's aggressive approach is just one strategy in the board partner playbook. Other manufacturers may seek high power limits through different means. Some might use a single, officially sanctioned 12V-2x6 connector but pair it with an exceptionally robust, multi-phase VRM built with premium components that can operate efficiently at very high currents, minimizing heat. Others might explore alternative connector types altogether or implement additional safety and monitoring circuitry that can dynamically throttle power if specific temperatures on the PCB are exceeded.
The key differentiator will be reliability. A competitor's card that can sustain high power loads without risk of damage, even if its absolute peak power limit is slightly lower than a dual-connector design, may ultimately win more favor with enthusiasts who value system stability and longevity. This incident provides a clear competitive warning: simply offering the highest potential power limit is not a viable product strategy if it compromises the fundamental integrity of the hardware. The race is as much about intelligent power management and robust engineering as it is about raw electrical capacity.
Risk and Limitations: The Inherent Dangers of Pushing Boundaries
When Innovation Outpaces Validation
Prototype failures like this are an essential, if dramatic, part of the hardware development cycle. They identify failure points under stress that simulations and standard tests might not reveal. The risk, however, lies in whether such a design, if it had passed initial testing, could have made it to market with a latent flaw. A consumer product failing in this manner could lead to property damage, data loss, and serious safety concerns, not to mention massive reputational and financial damage for the manufacturer.
This underscores the critical importance of extensive environmental stress testing, including long-duration, high-load cycling in varying thermal conditions. It also highlights a limitation of the current trajectory: there is a physical ceiling to how much power can be safely delivered through a consumer-grade graphics card using existing materials and form factors. Innovations in PCB substrate materials (like ceramics or metal-core boards), more efficient VRM topologies, or even a move to higher voltage, lower current delivery systems may be required to safely transcend these limits, rather than just adding more parallel connectors of the same type.
The Path Forward for Gigabyte and High-Power GPU Design
Back to the Drawing Board with New Data
For Gigabyte's engineering team, this failed prototype is a valuable source of data. Forensic analysis of the damaged PCB will pinpoint the exact initiation point of the failure—whether it was a specific VRM component, a solder joint, a PCB via, or the connector solder pads themselves. This knowledge will inform a revised design, which may involve a complete re-layout of the power stages, the use of thicker copper layers, additional thermal pads or heatsinks on the PCB rear, or even the integration of temperature sensors directly at the connector interface to trigger throttling before a critical temperature is reached.
It may also lead to a reassessment of the project's goals. The company might decide that a dual-connector design is not commercially viable or safe within the standard card dimensions and instead focus on perfecting a single-connector, high-efficiency design. Alternatively, they could pursue a completely different form factor, such as a dual-slot thickness or a board that requires a dedicated external cooling solution for the VRM area. The incident forces a hard conversation about the trade-offs between peak performance potential and real-world reliability, a conversation that will ultimately shape the final product that may or may not reach store shelves.
