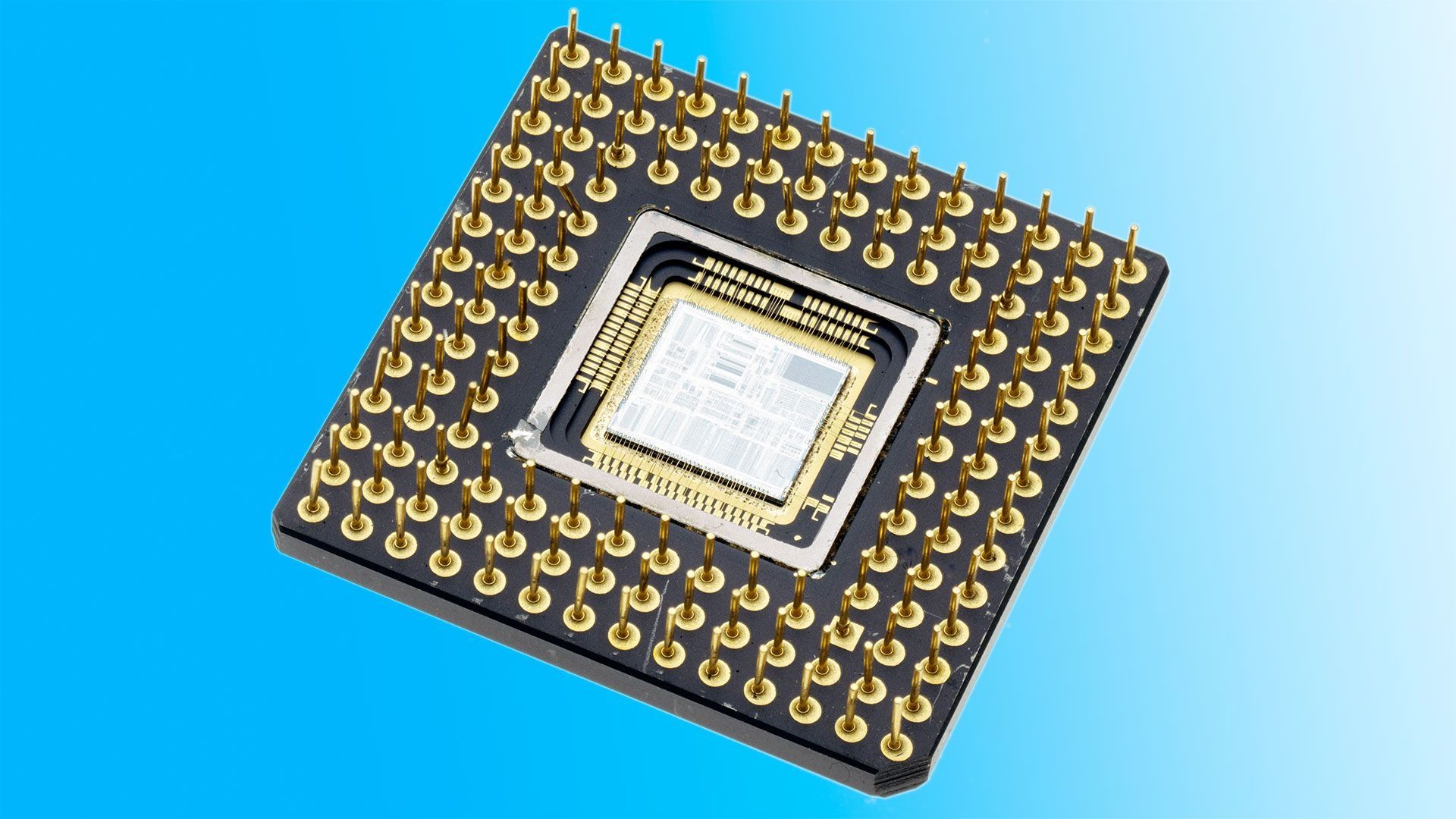

The Intel 386 at 40: How 275,000 Transistors Running at 16MHz Revolutionized Personal Computing
📷 Image source: cdn.mos.cms.futurecdn.net
The Dawn of a New Computing Era
October 1985: A Quiet Revolution Begins
When Intel introduced the 80386 microprocessor in October 1985, few could have predicted how profoundly it would reshape the computing landscape. The chip, commonly known as the Intel 386, represented a monumental leap in processing power with its 275,000 transistors operating at 16MHz. According to tomshardware.com, this represented approximately 100 times more transistors than Intel's first microprocessor, the 4004, which had only 2,300 transistors when it debuted in 1971.
The 386's architecture enabled true 32-bit computing for the first time in the personal computer space, allowing systems to address up to 4GB of physical memory. This memory addressing capability was revolutionary at a time when most personal computers were limited to 640KB or 1MB of RAM. The processor's design also introduced protected mode operation, which prevented applications from interfering with each other or with the operating system, laying the groundwork for modern multitasking environments.
Technical Architecture Breakthroughs
Inside the 275,000-Transistor Design
The Intel 386's internal architecture represented a significant departure from previous x86 processors. It featured a 32-bit internal and external data bus, along with 32-bit address registers. The chip's pipelined execution unit allowed for simultaneous instruction fetching, decoding, and execution, dramatically improving performance over non-pipelined designs. This pipelining approach became fundamental to subsequent processor architectures and remains a cornerstone of modern CPU design.
Another critical innovation was the 386's memory management unit (MMU), which provided hardware support for virtual memory and paging. This allowed operating systems to use disk storage as an extension of physical RAM, enabling programs to run that were larger than the available physical memory. The processor also introduced three operating modes: real mode for backward compatibility with 8086 software, protected mode for advanced multitasking, and virtual 8086 mode that allowed multiple real-mode applications to run simultaneously in protected environments.
Manufacturing and Production Evolution
From 1.5 Micron to 1 Micron Processes
The original Intel 386, designated the 80386DX, was manufactured using 1.5 micron CMOS technology. This manufacturing process, while advanced for its time, would be considered enormous by today's standards where processors are measured in nanometers. The chip initially operated at clock speeds of 12MHz and 16MHz, with later versions reaching 33MHz as manufacturing processes improved. According to tomshardware.com, the 386's 275,000 transistors were packed into a die measuring approximately 104 square millimeters.
As production matured, Intel introduced the 80386SX in 1988 as a cost-reduced version with a 16-bit external data bus. This allowed computer manufacturers to create more affordable systems while maintaining software compatibility with the full 386 architecture. The manufacturing process eventually shrunk to 1 micron technology, reducing power consumption and cost while improving performance. These process improvements demonstrated Intel's commitment to Moore's Law, which predicts the doubling of transistor counts approximately every two years.
Impact on Personal Computer Markets
Transforming Business and Home Computing
The Intel 386 processor fundamentally changed the personal computer market by enabling systems capable of running advanced operating systems and applications. Before the 386, most PCs ran MS-DOS and were limited to single-tasking operations. The 386's capabilities made practical the development and widespread adoption of graphical user interfaces, particularly Microsoft Windows, and more sophisticated operating systems like IBM's OS/2. This shift marked the beginning of the end for command-line interfaces as the primary user experience.
Business computing underwent a dramatic transformation as 386-based systems became capable of running complex accounting software, database applications, and early desktop publishing tools. The ability to run multiple applications simultaneously without system crashes revolutionized office productivity. Home users also benefited as educational software, games, and multimedia applications became increasingly sophisticated, taking advantage of the 386's improved processing power and memory capabilities.
Software Revolution Enabled
New Operating Systems and Applications
The Intel 386's advanced features directly enabled the development of modern operating systems. Microsoft Windows began its transition from a graphical shell running on top of DOS to a true operating system with Windows NT, which was specifically designed for 386 and later processors. Similarly, Linux kernel development, which began in 1991, heavily relied on 386 capabilities for its initial implementations. The processor's protected mode and virtual memory support were essential for these advanced operating systems to provide stable multitasking environments.
Application software underwent equally significant changes. Programs like AutoCAD, Adobe Photoshop, and early versions of Microsoft Office leveraged the 386's 32-bit capabilities to handle larger documents and more complex calculations. The gaming industry particularly benefited, with titles like Wolfenstein 3D and Doom requiring 386-level processing power for their revolutionary 3D graphics. These applications established new standards for what personal computers could accomplish, moving beyond basic word processing and spreadsheets.
Competitive Landscape Shifts
Intel's Dominance and Challenger Responses
The success of the Intel 386 solidified Intel's position as the dominant force in the microprocessor market and established the x86 architecture as the industry standard. Competitors like AMD and Cyrix eventually produced their own 386-compatible processors, but Intel maintained technological leadership throughout the product's lifecycle. According to tomshardware.com, the 386 architecture became so successful that it forced other processor architectures, including Motorola's 68000 series, into niche markets.
The 386's success also transformed the relationship between Intel and IBM. While IBM had been the dominant force in the PC market with its IBM PC and AT systems using Intel's earlier processors, the 386 era saw the rise of clone manufacturers like Compaq, who were first to market with 386-based systems. This shift marked the beginning of the Wintel (Windows-Intel) alliance that would dominate personal computing for decades, reducing IBM's influence over PC standards and architecture.
Technological Legacy and Influence
Foundation for Modern Computing
The architectural decisions made in the Intel 386 continue to influence computing four decades later. The basic x86 instruction set architecture, extended and enhanced through multiple generations, remains the foundation for most personal computers and servers today. The 386's implementation of protected mode, virtual memory, and hardware-assisted task switching established principles that underpin modern operating system security and stability. These features enabled the development of the sophisticated computing environments we now take for granted.
The processor's design also established patterns for backward compatibility that have become a hallmark of the x86 architecture. The ability to run software written for earlier 8086 and 80286 processors while taking advantage of new 386 capabilities created a smooth transition path for users and developers. This commitment to compatibility has persisted through subsequent processor generations, allowing modern systems to run software decades old while still benefiting from technological advances.
Economic and Industry Impact
Creating New Markets and Opportunities
The Intel 386 processor generated enormous economic value and created new industry segments. The market for 386-based systems spawned numerous successful companies beyond Intel itself, including motherboard manufacturers, memory producers, and peripheral makers. Software companies flourished by creating applications that leveraged the 386's capabilities, while computer retailers and system integrators found new revenue streams selling and supporting these more powerful systems. According to industry analysis, the 386 family generated billions of dollars in revenue for Intel and its partners.
The processor's success also accelerated the professionalization of information technology departments in businesses of all sizes. As 386-based systems became capable of running critical business applications, companies invested heavily in IT infrastructure and personnel. This trend created thousands of jobs in system administration, network management, and software development, establishing patterns of corporate technology adoption that continue to shape business operations today.
Evolution to Successor Processors
From 386 to 486 and Beyond
The Intel 386's architecture served as the foundation for its immediate successor, the 80486, which integrated the floating-point unit and added cache memory on the same chip. This integration pattern continued with the Pentium processor, which introduced superscalar architecture capable of executing multiple instructions per clock cycle. Each successive generation built upon the 386's fundamental 32-bit architecture while adding new features and improving performance. The basic programming model established by the 386 remains relevant even in today's 64-bit processors.
The transition from the 386 to later processors demonstrated the scalability of the x86 architecture. While clock speeds increased from 16MHz to multiple gigahertz and transistor counts grew from 275,000 to billions, the fundamental instruction set and operating modes introduced with the 386 provided a stable platform for software development. This architectural stability has been a key factor in the long-term success of the x86 ecosystem, allowing investment in software and training to pay dividends across multiple processor generations.
Historical Context and Significance
Place in Computing History
The Intel 386 occupies a critical position in the history of computing, marking the transition from 16-bit to 32-bit computing as the mainstream standard. Its introduction coincided with other technological advancements, including the standardization of local area networking, the emergence of CD-ROM storage, and the early development of the World Wide Web. These parallel developments created a perfect storm of innovation that transformed personal computers from hobbyist machines to essential business tools. According to tomshardware.com, the 386's impact extended far beyond its technical specifications, influencing how people worked, communicated, and accessed information.
The processor's 40-year legacy demonstrates how architectural decisions can have long-lasting consequences in the technology industry. Design choices made for the 386 continue to influence computing today, from the basic instruction set to concepts of memory protection and virtualiation. This longevity is remarkable in an industry characterized by rapid change and obsolescence, underscoring the 386's foundational role in creating the modern computing environment we experience today.
